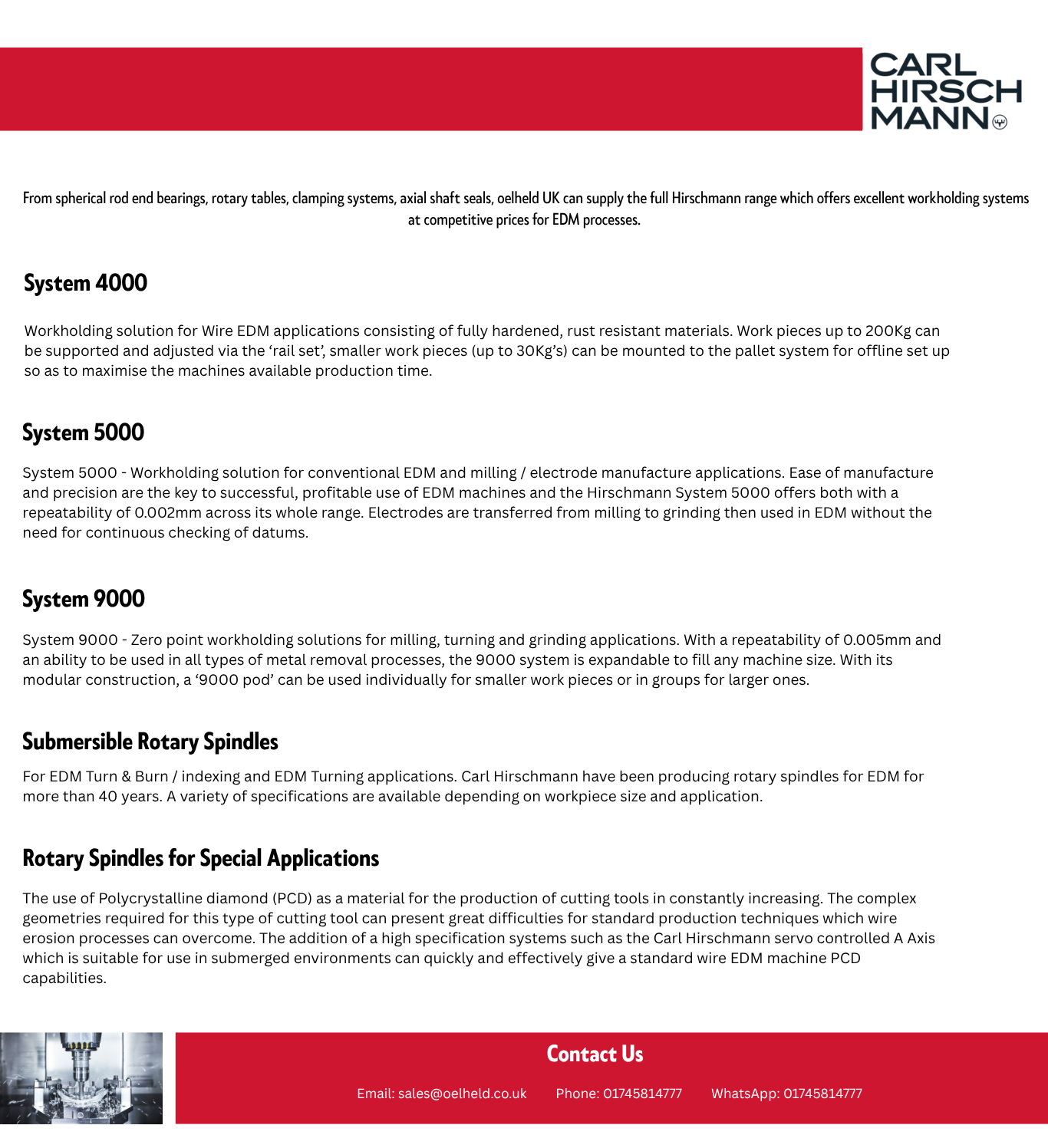

From spherical rod bearings, rotary tables, clamping systems, axial shaft seals, oelheld UK can supply the full Hirschmann range which offers excellent workholding systems at competitive prices for EDM processes.
System 4000
Workholding solution for Wire EDM applications consisting of fully hardened, rust resistant materials. Work pieces up to 200kg can be supported and adjusted via the ‘rail set’, smaller work pieces (up to 30kg’s) can be mounted to the pallet system for offline set up so as to maximise the machines available production time.
System 5000
System 5000 - Workholding solution for conventional EDM and milling / electrode manufacture applications. Ease of manufacture and precision are the key to successful, profitable use of EDM machines and the Hirschmann System 5000 offers both with a repeatability of 0.002mm across its whole range. Electrodes are transferred from milling to grinding then used in EDM without the need for continuous checking of datums.
System 9000
System 9000 - Zero point workholding solutions for milling, turning and grinding applications. With a repeatability of 0.005mm and an ability to be used in all types of metal removal processes, the 9000 system is expandable to fit any machine size. With its modular construction, a ‘9000 pod’ can be used individually for smaller work pieces or in groups for larger ones.
Submersible Rotary Spindles
For EDM Turn & Burn / indexing and EDM Turning applications. Carl Hirschmann have been producing rotary spindles for EDM for more than 40 years. A variety of specifications are available depending on workpiece size and application.
Rotary Spindles for Special Applications
The use of Polycrystalline diamond (PCD) as a material for the production of cutting tools is constantly increasing. The complex geometries required for this type of cutting tool can present great difficulties for standard production techniques which wire erosion processes can overcome. The addition of a high specification systems such as the Carl Hirschmann servo controlled A Axis with suitable for use in submerged environments can quickly and effectively give a standard wire EDM machine PCD capabilities.
