Surplus Mann + Hummel EDM Filter Stock Flash Sale

Our warehouse has recently undergone a full reorganisation and to make a little more space we now have some Mann + Hummel EDM filter stock available at discounted rates but we only have limited stock so be quick if you want to grab a bargain! Discounts range between 15-20% dependent upon quantity.

Available Models:  H34 1390 / H34 2240 / H34 1290/1 / H34 1290/3 / H34 2090 / H15 190/10 / H15 190/12 / H15 190/25 / ELINE (details for all models below…)

Please email sales@oelheld.co.uk or call us on 01745 814 777 for pricing or to check compatibility with you machine make and model.

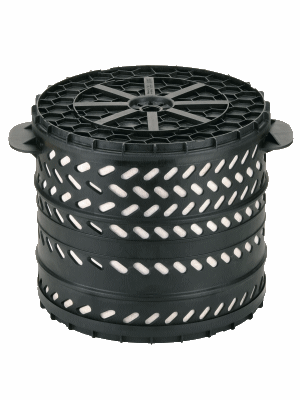

H34 1390

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 300 mm / 11.8 in

Filter connection: G 3/4"

Diameter center tube:

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long Life filter: Long-life concept

Bellow: Double bellow technology

Filter surface: 13,5 qm / 145.3 sqft

Filter housing: Plastic

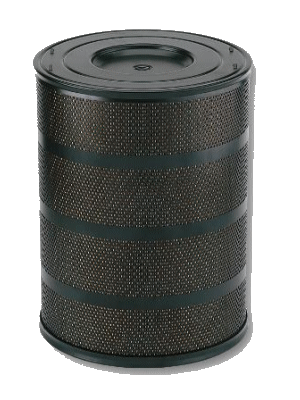

H 34 2240

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 450 mm / 17.7 in

Filter connection: G 3/4

Diameter center tube:

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long-Life filter: Long-life concept

Bellow: Double bellow technology

Filter surface: 22,4 qm / 241.1 sqft

Filter housing: Metal




H 34 1290

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 339 mm / 13.3 in

Filter connection: Center tube

Diameter center tube: 47,5 mm / 1.8 in

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long-Life filter: Long-life concept

Bellow: Macro pleating technology

Filter surface: 12,6 qm / 135,6 sqft

Filter housing: Plastic

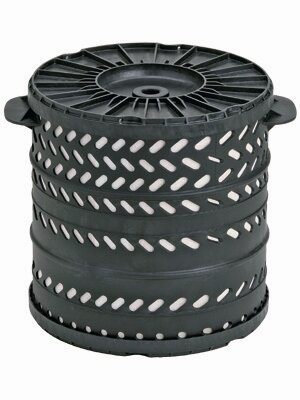

H 34 1290/1

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 339 mm / 13.3 in

Filter connection: G 3/4

Diameter center tube:

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long-Life filter: Long-life concept

Bellow: Macro pleating technology

Filter surface: 12,6 qm / 135,6 sqft

Filter housing: Plastic





ELINE

Diameter outer tube: 150mm / 5.9inch

Diameter outer tube with handles:

Height: 375 mm / 14.8 in

Filter connection: Center tube

Diameter center tube: 32 mm / 1.25 in

Flow direction: Outside-to-inside

Filter fineness: 3-5 µm

Filter media: Cellulose

Bellow: Single bellow technology

Filter surface: 2,7 qm / 29.1 sqft

Filter housing: Plastic





H15 190/10

Diameter outer tube: 150 mm / 5.9 in

Diameter outer tube with handles:

Height: 375 mm / 14.8 in

Filter connection: Center tube

Diameter center tube: 32 mm / 1.25 in

Flow direction: Outside-to-inside

Filter fineness: 10 µm

Filter media: Cellulose

Long-Life filter:

Bellow: Single bellow technology

Filter surface:2,8 qm / 30.1 sqft

Filter housing:Plastic





H15190/12

Diameter outer tube: 150 mm / 5.9 in

Diameter outer tube with handles: no handles

Height: 364 mm / 14.3 in

Filter connection: Center tube

Diameter center tube: 32 mm / 1.25 in

Flow direction: Outside-to-inside

Filter fineness: 25 µm

Filter media: Cellulose

Bellow: Single bellow technology

Filter surface: 2,2 qm / 23.7 sqft

Filter housing: Metal

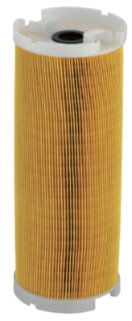

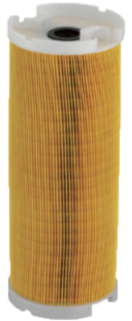

H15190/25

Diameter outer tube: 150 mm / 5.9 in

Diameter outer tube with handles: no handles

Height: 375 mm / 14.8 in

Filter connection: Center tube

Diameter center tube: 32 mm / 1.25 in

Flow direction: Outside-to-inside

Filter fineness: 25 µm

Filter media: Cellulose

Bellow: Single bellow technology

Filter surface: 2,3 qm / 24.8 sqft

Filter housing: Plastic

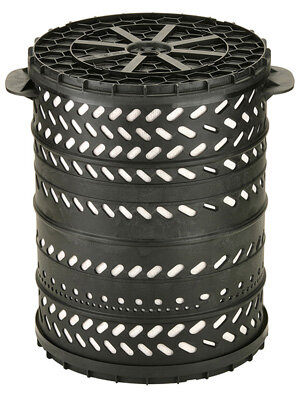

H34 2090

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 450 mm / 17.7 in

Filter connection: G 3/4 "

Diameter center tube:

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long-Life filter: Long-life concept

Bellow: Double bellow technology

Filter surface: 20,6 qm / 221.7 sqft

Filter housing: Plastic




H34 1290/3

Diameter outer tube: 340 mm / 13.4 in

Diameter outer tube with handles:

Height: 300 mm / 11.8 in

Filter connection: Center tube

Diameter center tube: 60 mm / 2.4 in

Flow direction: Inside-to-outside

Filter fineness: 3-5 µm

Filter media: Cellulose

Long-Life filter: Long-life concept

Bellow: Macro pleating technology

Filter surface: 10,5 qm / 113.0 sqft

Filter housing: Plastic
